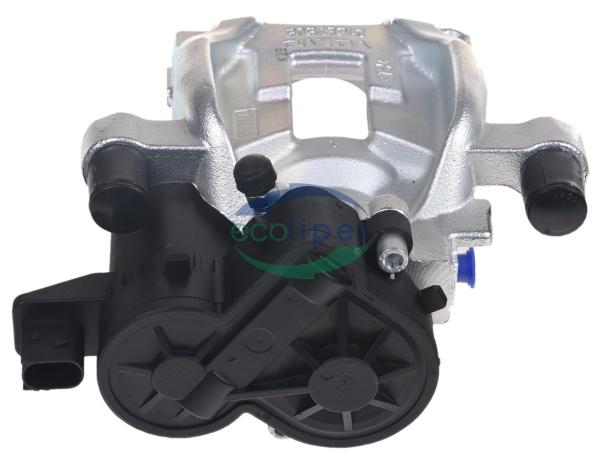

225029

Numéro d'article

225029

Numéro EAN

5414560050972

Caractéristiques

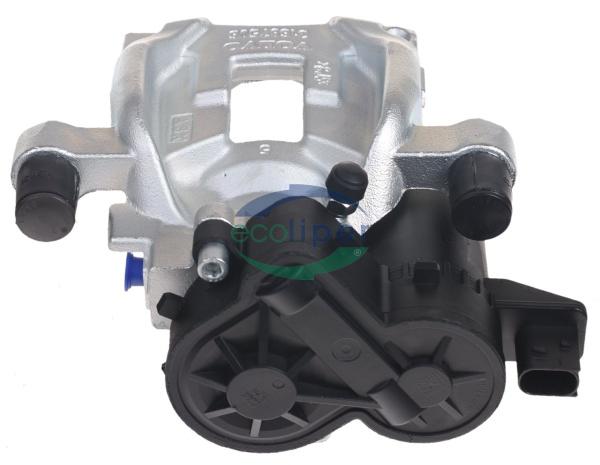

Référence opposée 225030
Kit(s) KC22001, KC22001S, KI38161
Piston(s) PI3879, PI3879X
Diamètre(s) piston(s) (mm) 1x Ø38
Fabricant ATE
Position sur la voiture Etrier arrière EPB gauche
OE 36010401, 36011367
Marque VOLVO
Epaisseur disque (mm) 12,0
Marque Réference marque Remarque
VOLVO 36010401
VOLVO 36011367

VOLVO

Type KW CH Chassis Moteur Année Marque FR N Diamètre Gauche Droite P.O.S Epaisseur Diamètre disque Remarque
S60 III (224) (02/19-)
B3 MHEV 120 163 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B4 Mild-Hybrid 145 197 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid 184 250 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid AWD 184 250 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid AWD 183 249 2,0 03/22- ATE R 1 38 225029 225030 RF 12,0
B6 Mild-Hybrid AWD 220 299 2,0 04/21- ATE R 1 38 225029 225030 RF 12,0
T4 140 190 2,0 02/19- ATE R 1 38 225029 225030 RF 12,0
T4 Polestar 155 210 2,0 07/19- ATE R 1 38 225029 225030 RF 12,0
T5 184 250 2,0 02/19- ATE R 1 38 225029 225030 RF 12,0
T5 AWD 184 250 2,0 02/19- ATE R 1 38 225029 225030 RF 12,0
T5 AWD 183 249 2,0 05/19- ATE R 1 38 225029 225030 RF 12,0
T5 AWD 187 254 2,0 05/19- ATE R 1 38 225029 225030 RF 12,0
T5 Polestar 186 253 2,0 07/19- ATE R 1 38 225029 225030 RF 12,0
T5 Polestar AWD 186 253 2,0 07/19- ATE R 1 38 225029 225030 RF 12,0
T6 AWD 228 310 2,0 05/19- ATE R 1 38 225029 225030 RF 12,0
T6 Polestar AWD 240 326 2,0 05/19- ATE R 1 38 225029 225030 RF 12,0
T8 Twin Engine AWD 287 390 2,0 02/19- ATE R 1 38 225029 225030 RF 12,0
S90 II (234) (03/16-)
2.0 183 249 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
B4 Mild-Hybrid 145 197 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid 184 250 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid 183 249 2,0 03/22- ATE R 1 38 225029 225030 RF 12,0
B5 Mild Hybrid AWD 180 245 2,0 03/23- ATE R 1 38 225029 225030 RF 12,0
B5 Mild Hybrid AWD 173 235 2,0 05/20- ATE R 1 38 225029 225030 RF 12,0
B6 Mild-Hybrid AWD 220 299 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
D3 110 150 2,0 03/16-08/18 ATE R 1 38 225029 225030 RF 12,0
D4 140 190 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
D4 120 163 2,0 09/18- ATE R 1 38 225029 225030 RF 12,0
D4 AWD 140 190 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
D4 Drive-E Polestar 147 200 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
D4 Drive-E Polestar AWD 147 200 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
D5 AWD 173 235 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
D5 Polestar AWD 177 240 2,0 06/19- ATE R 1 38 225029 225030 RF 12,0
T4 140 190 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T4 Polestar 155 210 2,0 06/19- ATE R 1 38 225029 225030 RF 12,0
T5 187 254 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
T5 184 250 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T5 Drive-E Polestar 192 261 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
T5 Drive-E Polestar 186 253 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T6 AWD 235 320 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
T6 AWD 228 310 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T6 Drive-E Polestar AWD 246 334 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
T6 Drive-E Polestar AWD 240 326 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T8 Hybrid AWD 287 390 2,0 04/18- ATE R 1 38 225029 225030 RF 12,0
T8 Hybrid Polestar AWD 233 317 2,0 01/19- ATE R 1 38 225029 225030 RF 12,0
T8 Plug-in Hybrid AWD 335 455 2,0 01/22- ATE R 1 38 225029 225030 RF 12,0
T8 Plug-in Hybrid AWD 340 462 2,0 04/22- ATE R 1 38 225029 225030 RF 12,0
T8 Plug-in Hybrid AWD 299 407 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T8 Plug-in Hybrid Polestar AWD 246 334 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
V60 II (225) (02/18-)
2.0 T6 Drive-E Polestar AWD 240 326 2,0 02/18- ATE R 1 38 225029 225030 RF 12,0
B3 Mild-Hybrid 120 163 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B4 Mild-Hybrid 145 197 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B4 Mild-Hybrid 145 197 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid 184 250 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid AWD 184 250 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B6 Mild-Hybrid AWD 220 299 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
D3 110 150 2,0 02/18- ATE R 1 38 225029 225030 RF 12,0
D3 AWD 110 150 2,0 09/18- ATE R 1 38 225029 225030 RF 12,0
D4 140 190 2,0 02/18- ATE R 1 38 225029 225030 RF 12,0
D4 AWD 140 190 2,0 09/18- ATE R 1 38 225029 225030 RF 12,0
D4 Polestar 147 200 2,0 02/18- ATE R 1 38 225029 225030 RF 12,0
D4 Polestar AWD 147 200 2,0 02/18- ATE R 1 38 225029 225030 RF 12,0
T4 140 190 2,0 05/19- ATE R 1 38 225029 225030 RF 12,0
T4 Polestar 155 210 2,0 07/19- ATE R 1 38 225029 225030 RF 12,0
T5 184 250 2,0 02/18- ATE R 1 38 225029 225030 RF 12,0
T5 AWD 184 250 2,0 09/18- ATE R 1 38 225029 225030 RF 12,0
T5 Polestar 186 253 2,0 07/19- ATE R 1 38 225029 225030 RF 12,0
T5 Polestar AWD 186 253 2,0 07/19- ATE R 1 38 225029 225030 RF 12,0
T6 AWD 228 310 2,0 02/18- ATE R 1 38 225029 225030 RF 12,0
T6 Plug-in Hybrid AWD 250 340 2,0 03/19- ATE R 1 38 225029 225030 RF 12,0
T6 Plug-in Hybrid AWD 257 349 2,0 05/22- ATE R 1 38 225029 225030 RF 12,0
T8 Plug-in Hybrid AWD 287 390 2,0 02/18- ATE R 1 38 225029 225030 RF 12,0
T8 Plug-in Hybrid AWD 335 455 2,0 05/22- ATE R 1 38 225029 225030 RF 12,0
T8 Plug-in Hybrid Polestar AWD 298 405 2,0 05/19- ATE R 1 38 225029 225030 RF 12,0
T8 Recharge AWD 317 431 2,0 01/23- ATE R 1 38 225029 225030 RF 12,0
V60 II Cross Country (227) (02/18-)
B4 Mild-Hybrid AWD 145 197 2,0 10/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid AWD 184 250 2,0 01/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid AWD 183 249 2,0 03/22- ATE R 1 38 225029 225030 RF 12,0
D3 AWD 110 150 2,0 12/18- ATE R 1 38 225029 225030 RF 12,0
D4 AWD 140 190 2,0 12/18- ATE R 1 38 225029 225030 RF 12,0
D4 Polestar AWD 147 200 2,0 02/18-12/20 ATE R 1 38 225029 225030 RF 12,0
T5 AWD 184 250 2,0 12/18- ATE R 1 38 225029 225030 RF 12,0
V90 II Cross Country (236) (03/16-)
B4 Mild-Hybrid AWD 145 197 2,0 10/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid 183 249 2,0 03/22- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid AWD 184 250 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild Hybrid AWD 173 235 2,0 12/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild Hybrid Polestar AWD 180 245 2,0 11/21- ATE R 1 38 225029 225030 RF 12,0
B6 Mild-Hybrid AWD 220 299 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
D4 AWD 120 163 2,0 09/18- ATE R 1 38 225029 225030 RF 12,0
D4 AWD 140 190 2,0 10/16- ATE R 1 38 225029 225030 RF 12,0
D5 AWD 173 235 2,0 10/16- ATE R 1 38 225029 225030 RF 12,0
D5 Polestar AWD 176 239 2,0 10/16- ATE R 1 38 225029 225030 RF 12,0
Polestar AWD 147 200 2,0 10/16- ATE R 1 38 225029 225030 RF 12,0
T5 AWD 183 249 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
T5 AWD 187 254 2,0 03/16-12/18 ATE R 1 38 225029 225030 RF 12,0
T5 AWD 184 250 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T5 Drive-E Polestar AWD 192 261 2,0 10/16-12/18 ATE R 1 38 225029 225030 RF 12,0
T5 Polestar AWD 186 253 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T6 AWD 235 320 2,0 10/16- ATE R 1 38 225029 225030 RF 12,0
T6 AWD 228 310 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T6 Polestar AWD 246 334 2,0 10/16-12/17 ATE R 1 38 225029 225030 RF 12,0
T6 Polestar AWD 240 326 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
V90 II Estate (235) (03/16-)
B4 Mild-Hybrid 145 197 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B4 Mild-Hybrid 145 197 2,0 10/20- ATE R 1 38 225029 225030 RF 12,0
B4 Mild-Hybrid AWD 145 197 2,0 10/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid 184 250 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild Hybrid AWD 173 235 2,0 12/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild Hybrid Polestar AWD 180 245 2,0 11/21- ATE R 1 38 225029 225030 RF 12,0
B6 Mild-Hybrid AWD 220 299 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
B6 Mild-Hybrid AWD 256 348 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
D3 110 150 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
D3 AWD 110 150 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
D4 140 190 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
D4 120 163 2,0 09/18- ATE R 1 38 225029 225030 RF 12,0
D4 AWD 140 190 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
D4 Polestar 147 200 2,0 10/16- ATE R 1 38 225029 225030 RF 12,0
D5 AWD 173 235 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
D5 Polestar AWD 176 239 2,0 10/16- ATE R 1 38 225029 225030 RF 12,0
Polestar AWD 147 200 2,0 10/16- ATE R 1 38 225029 225030 RF 12,0
T4 140 190 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T4 Polestar 155 210 2,0 06/19- ATE R 1 38 225029 225030 RF 12,0
T5 187 254 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
T5 184 250 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T5 Polestar 186 253 2,0 06/19- ATE R 1 38 225029 225030 RF 12,0
T6 AWD 235 320 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
T6 AWD 228 310 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T6 Plug-in-Hybrid AWD 257 349 2,0 01/22- ATE R 1 38 225029 225030 RF 12,0
T6 Plug-in-Hybrid AWD 250 340 2,0 06/20- ATE R 1 38 225029 225030 RF 12,0
T6 Polestar AWD 240 326 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T8 Hybrid AWD 287 390 2,0 04/18- ATE R 1 38 225029 225030 RF 12,0
T8 Plug-in-Hybrid AWD 299 407 2,0 03/16-12/18 ATE R 1 38 225029 225030 RF 12,0
T8 Plug-in Hybrid AWD 335 455 2,0 05/22- ATE R 1 38 225029 225030 RF 12,0
T8 Plug-in Hybrid Polestar AWD 246 334 2,0 03/16- ATE R 1 38 225029 225030 RF 12,0
T8 Plug-in Hybrid Polestar AWD 233 317 2,0 05/18- ATE R 1 38 225029 225030 RF 12,0
T8 Recharge AWD 317 431 2,0 01/23- ATE R 1 38 225029 225030 RF 12,0
XC60 II (246) (03/17-)
2.0 B5 Mild-Hybrid 183 249 2,0 03/22- ATE R 1 38 225029 225030 RF 12,0
2.0 B5 Mild-Hybrid AWD 183 249 2,0 03/22- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid AWD 184 250 2,0 01/20- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid AWD 173 235 2,0 04/19- ATE R 1 38 225029 225030 RF 12,0
B6 Mild-Hybrid AWD 220 299 2,0 03/20- ATE R 1 38 225029 225030 RF 12,0
D3 110 150 2,0 03/17- ATE R 1 38 225029 225030 RF 12,0
D4 140 190 2,0 03/17- ATE R 1 38 225029 225030 RF 12,0
D4 120 163 2,0 12/18- ATE R 1 38 225029 225030 RF 12,0
D4 AWD 140 190 2,0 03/17- ATE R 1 38 225029 225030 RF 12,0
D4 Polestar 147 200 2,0 05/20- ATE R 1 38 225029 225030 RF 12,0
D4 Polestar AWD 147 200 2,0 01/19- ATE R 1 38 225029 225030 RF 12,0
D5 AWD 173 235 2,0 03/17- ATE R 1 38 225029 225030 RF 12,0
D5 Polestar AWD 177 240 2,0 10/18- ATE R 1 38 225029 225030 RF 12,0
T4 140 190 2,0 09/18- ATE R 1 38 225029 225030 RF 12,0
T4 Polestar 155 210 2,0 07/19- ATE R 1 38 225029 225030 RF 12,0
T5 187 254 2,0 03/17- ATE R 1 38 225029 225030 RF 12,0
T5 184 250 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T5 AWD 187 254 2,0 03/17-12/18 ATE R 1 38 225029 225030 RF 12,0
T5 AWD 183 249 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T5 AWD 184 250 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T5 Polestar 186 253 2,0 05/19- ATE R 1 38 225029 225030 RF 12,0
T5 Polestar AWD 192 261 2,0 03/17-12/18 ATE R 1 38 225029 225030 RF 12,0
T5 Polestar AWD 186 253 2,0 07/19- ATE R 1 38 225029 225030 RF 12,0
T6 AWD 235 320 2,0 03/17- ATE R 1 38 225029 225030 RF 12,0
T6 AWD 228 310 2,0 10/17- ATE R 1 38 225029 225030 RF 12,0
T6 Plug-In Hybrid AWD 257 349 2,0 01/22- ATE R 1 38 225029 225030 RF 12,0
T6 Plug-In Hybrid AWD 250 340 2,0 04/21- ATE R 1 38 225029 225030 RF 12,0
T6 Polestar AWD 246 334 2,0 03/17- ATE R 1 38 225029 225030 RF 12,0
T6 Polestar AWD 240 326 2,0 07/19- ATE R 1 38 225029 225030 RF 12,0
T8 Hybrid AWD 335 456 2,0 01/22- ATE R 1 38 225029 225030 RF 12,0
T8 Hybrid AWD 287 390 2,0 02/18- ATE R 1 38 225029 225030 RF 12,0
T8 Hybrid AWD 299 407 2,0 03/17- ATE R 1 38 225029 225030 RF 12,0
T8 Hybrid AWD 298 405 2,0 09/17- ATE R 1 38 225029 225030 RF 12,0
B4 Mild-Hybrid 145 197 2,0 05/19- ATE R 1 38 225029 225030 RF 12,0
B4 Mild-Hybrid 145 197 2,0 09/19- ATE R 1 38 225029 225030 RF 12,0
B4 Mild-Hybrid AWD 145 197 2,0 04/19- ATE R 1 38 225029 225030 RF 12,0
B4 Plug-In Hybrid AWD 250 340 2,0 01/21- ATE R 1 38 225029 225030 RF 12,0
B5 Mild-Hybrid 184 250 2,0 01/20- ATE R 1 38 225029 225030 RF 12,0

Produits associés

Politique de confidentialité @ 2026 - UDF. Création de sites internet | ProduWeb
