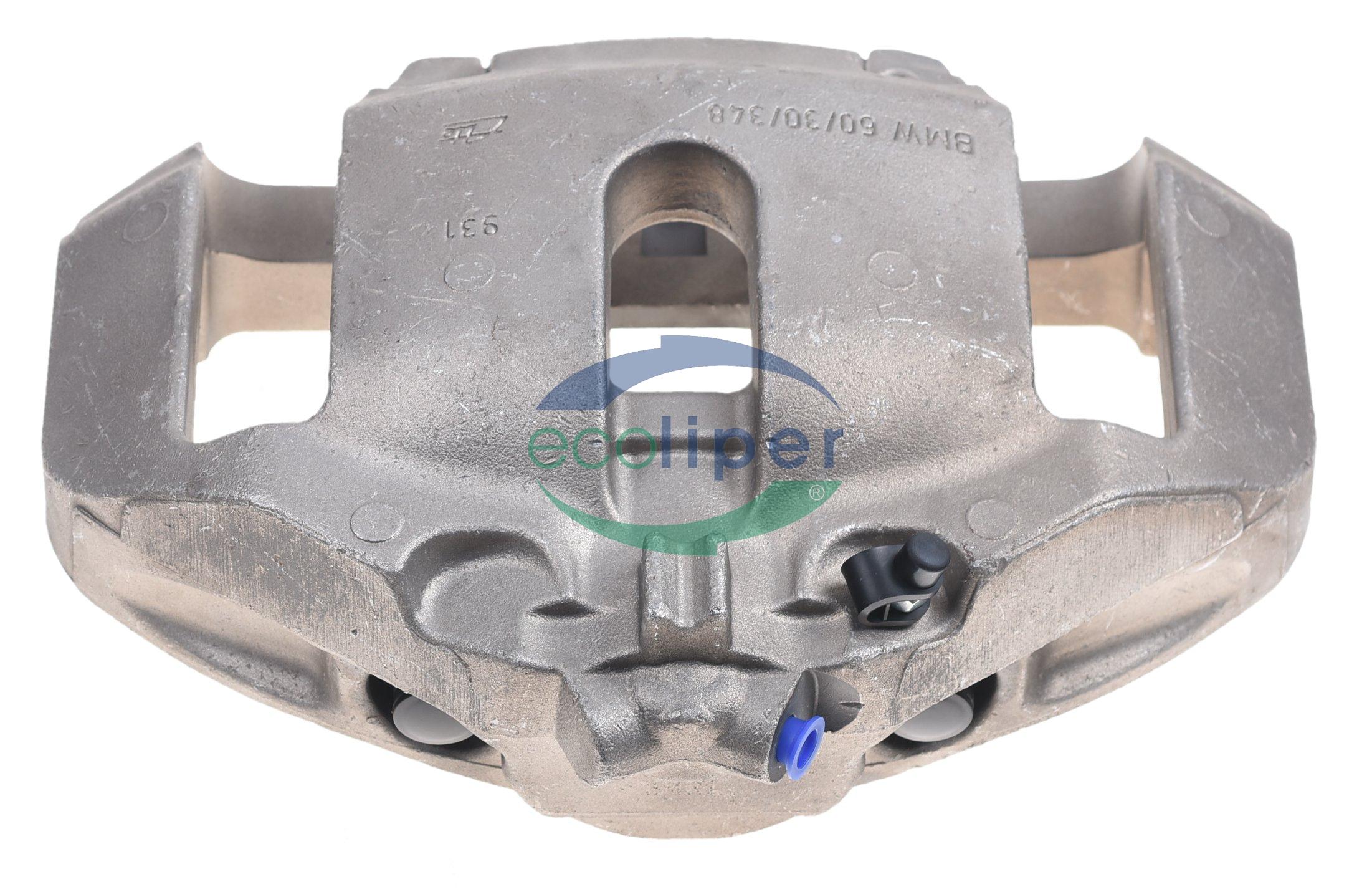

221771

Numéro d'article

221771

Numéro EAN

5414560157244

Caractéristiques

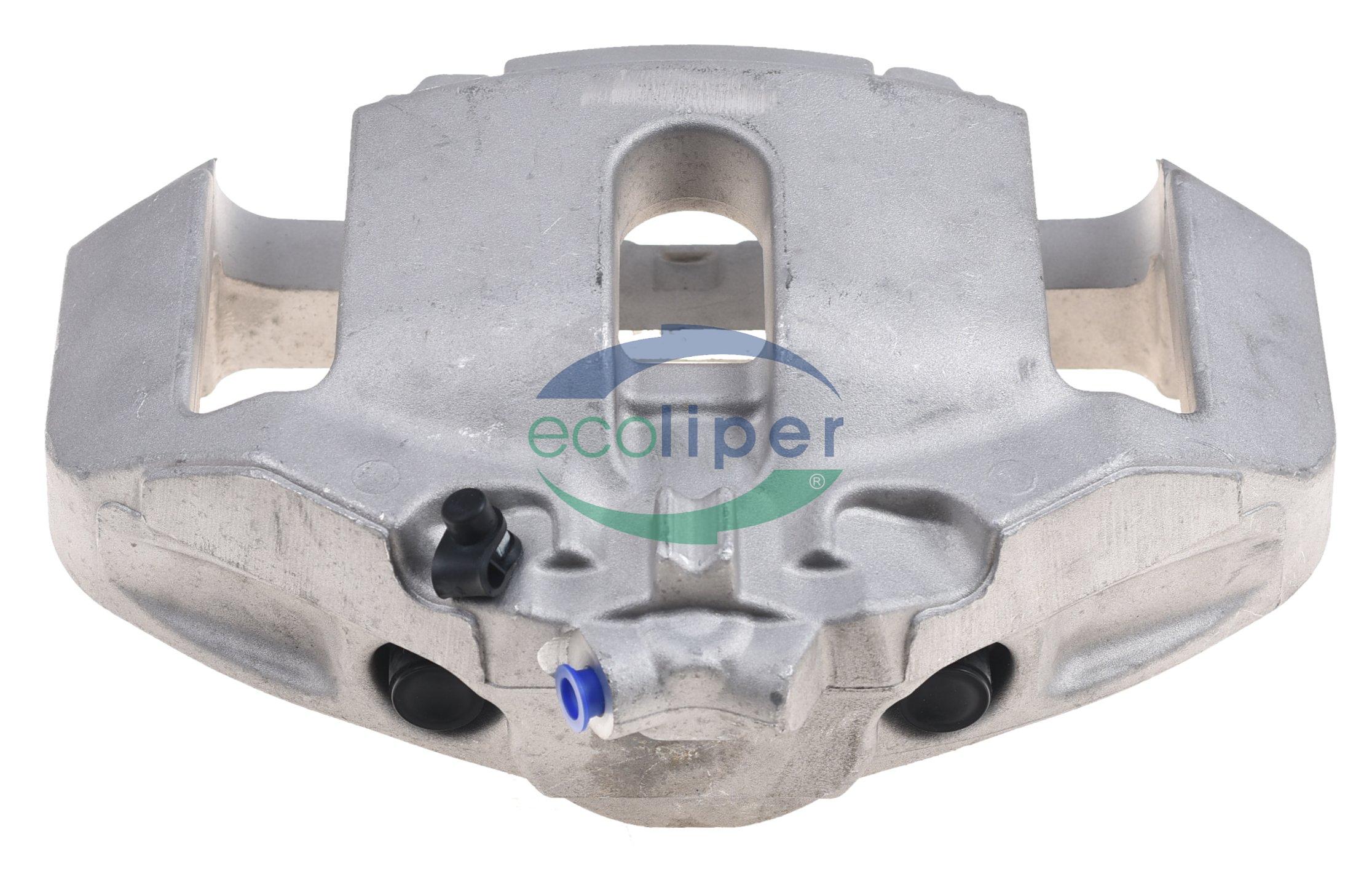

Référence opposée 221772

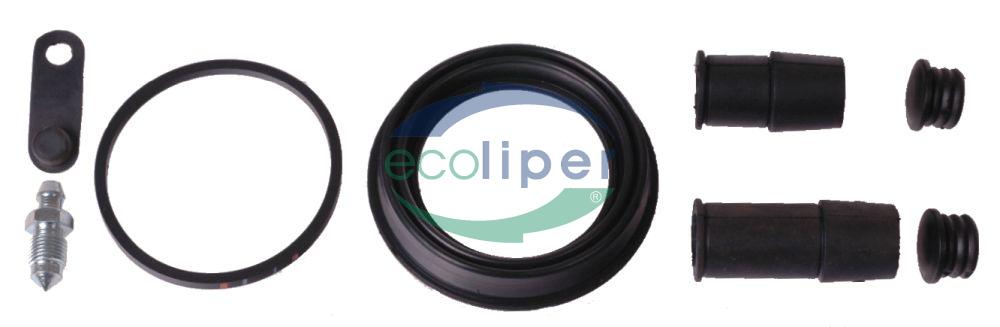

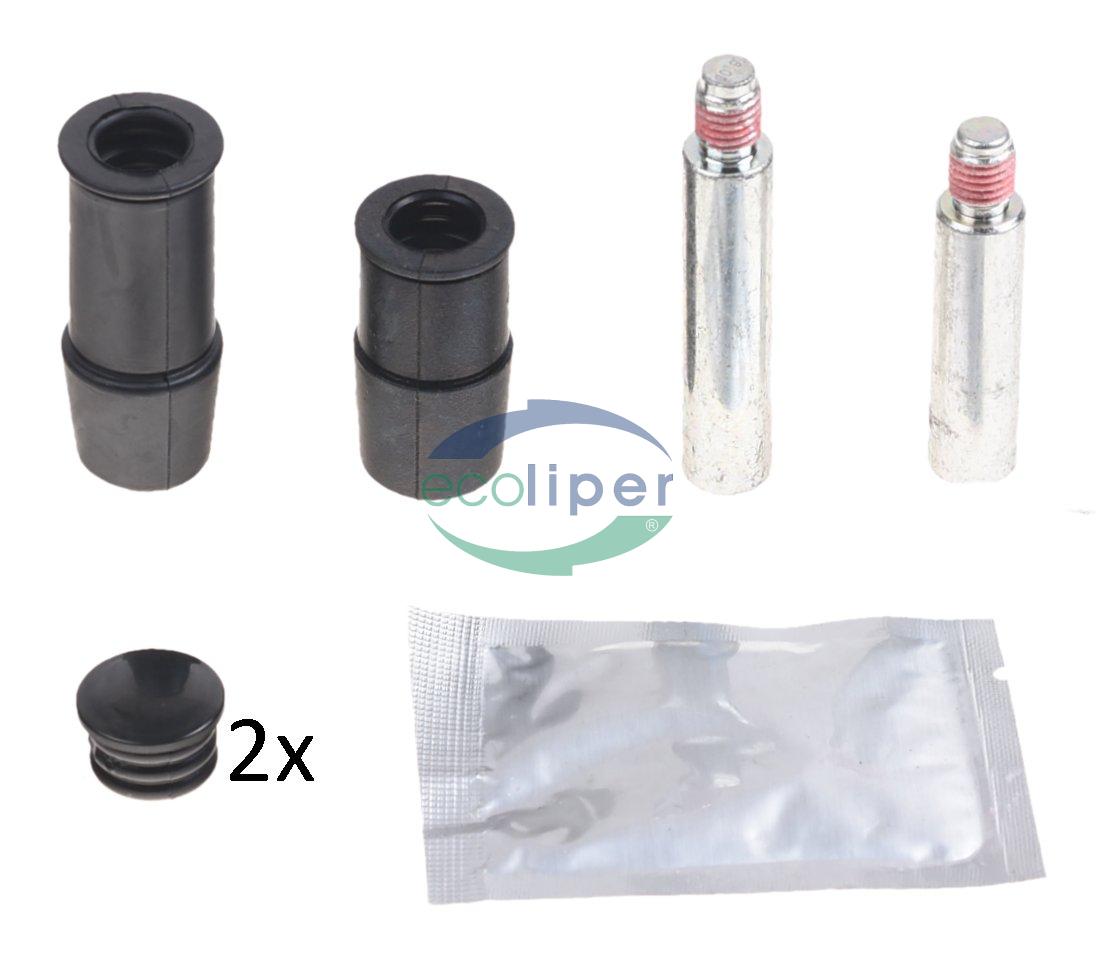

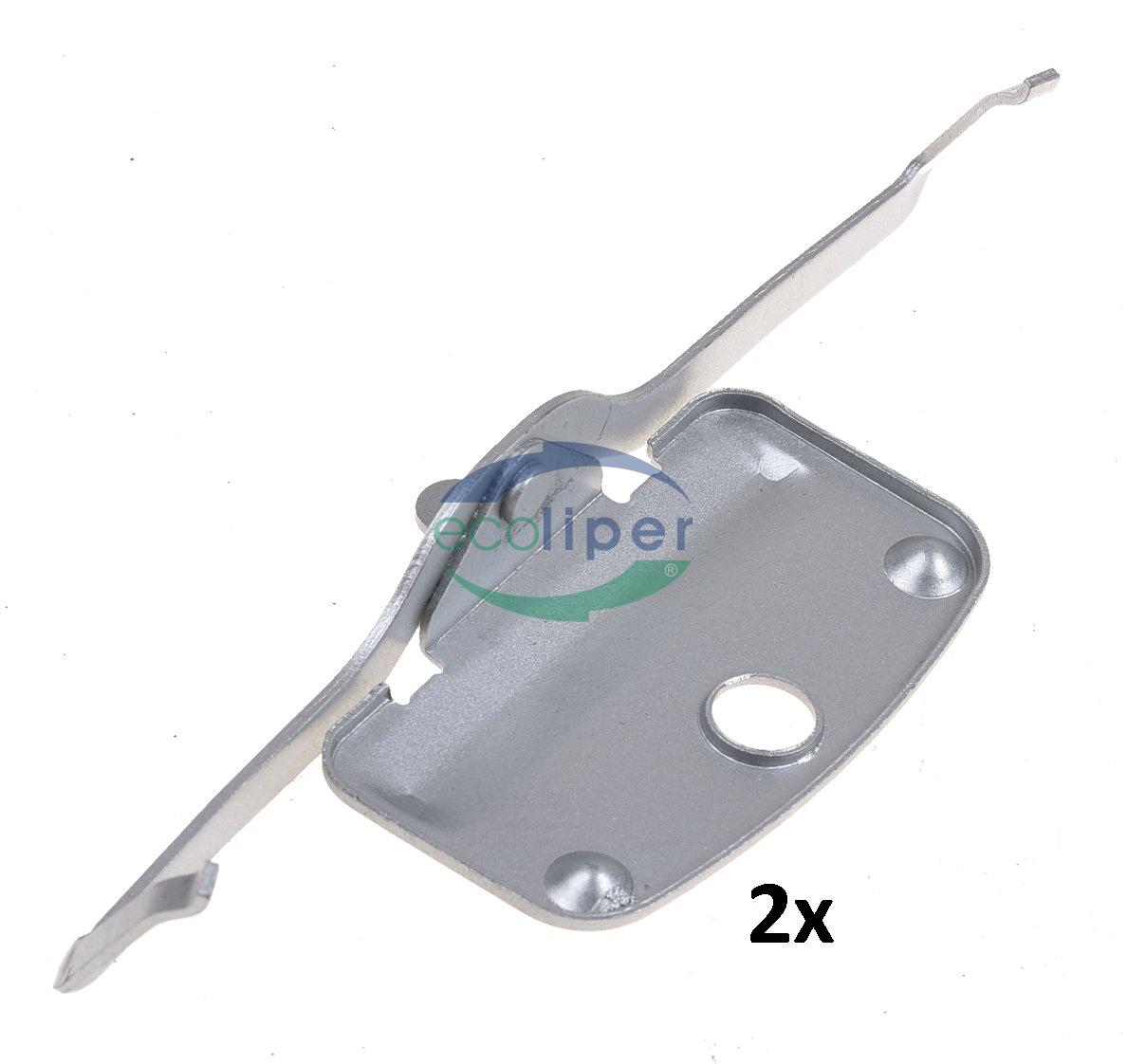

Kit(s) KC22013, KC22013S, KI60148, KP1626
Piston(s) PI6053
Diamètre(s) piston(s) (mm) 1x Ø60
Fabricant ATE
Position sur la voiture Etrier avant gauche
OE 34 11 6 792 689
Marque BMW
Epaisseur disque (mm) 30,0-36,0
Marque Réference marque Remarque
BMW 34 11 6 792 689

BMW

Type KW CH Chassis Moteur Année Marque FR N Diamètre Gauche Droite P.O.S Epaisseur Diamètre disque Remarque
5 (F10) (06/09-10/16)
520 d 120 163 2,0 06/10-10/16 ATE F 1 60 221771 221772 FR 36,0
520 d 140 190 2,0 07/14-10/16 ATE F 1 60 221771 221772 FR 36,0
520 d 151 205 2,0 07/14-10/16 ATE F 1 60 221771 221772 FR 36,0
520 d 155 211 2,0 10/13-10/16 ATE F 1 60 221771 221772 FR 36,0
520 d xDrive 120 163 2,0 07/13-10/16 ATE F 1 60 221771 221772 FR 36,0
520 d xDrive 140 190 2,0 07/14-10/16 ATE F 1 60 221771 221772 FR 36,0
520 d xDrive 151 205 2,0 07/14-10/16 ATE F 1 60 221771 221772 FR 36,0
520 d xDrive 155 211 2,0 10/13-10/16 ATE F 1 60 221771 221772 FR 36,0
525 d 155 211 2,0 09/11-10/16 ATE F 1 60 221771 221772 FR 30,0
525 d 160 218 2,0 09/11-10/16 ATE F 1 60 221771 221772 FR 30,0
525 d 155 211 2,0 09/11-10/16 ATE F 1 60 221771 221772 FR 36,0
525 d 160 218 2,0 09/11-10/16 ATE F 1 60 221771 221772 FR 36,0
525 d 150 204 3,0 03/10-08/11 ATE F 1 60 221771 221772 FR 30,0
525 d 150 204 3,0 03/10-08/11 ATE F 1 60 221771 221772 FR 36,0
525 d xDrive 155 211 2,0 09/11-10/16 ATE F 1 60 221771 221772 FR 30,0
525 d xDrive 160 218 2,0 09/11-10/16 ATE F 1 60 221771 221772 FR 30,0
528 i 180 245 2,0 09/11-10/16 ATE F 1 60 221771 221772 FR 30,0
528 i 180 245 2,0 09/11-10/16 ATE F 1 60 221771 221772 FR 36,0
528 i 190 258 3,0 03/10-08/11 ATE F 1 60 221771 221772 FR 30,0
528 i 190 258 3,0 03/10-08/11 ATE F 1 60 221771 221772 FR 36,0
528 i xDrive 180 245 2,0 09/11-10/16 ATE F 1 60 221771 221772 FR 30,0
528 i xDrive 180 245 2,0 09/11-10/16 ATE F 1 60 221771 221772 FR 36,0
530 d 180 245 3,0 01/10-08/11 ATE F 1 60 221771 221772 FR 30,0
530 d 180 245 3,0 01/10-08/11 ATE F 1 60 221771 221772 FR 36,0
530 d 210 286 3,0 09/10-10/16 ATE F 1 60 221771 221772 FR 30,0
530 d 210 286 3,0 09/10-10/16 ATE F 1 60 221771 221772 FR 36,0
530 d 190 258 3,0 09/11-10/16 ATE F 1 60 221771 221772 FR 30,0
530 d 190 258 3,0 09/11-10/16 ATE F 1 60 221771 221772 FR 36,0
530 d xDrive 190 258 3,0 03/11-10/16 ATE F 1 60 221771 221772 FR 30,0
530 d xDrive 210 286 3,0 03/11-10/16 ATE F 1 60 221771 221772 FR 30,0
530 d xDrive 190 258 3,0 03/11-10/16 ATE F 1 60 221771 221772 FR 36,0
530 d xDrive 210 286 3,0 03/11-10/16 ATE F 1 60 221771 221772 FR 36,0
530 i 190 258 3,0 03/10-06/13 ATE F 1 60 221771 221772 FR 30,0
530 i 190 258 3,0 03/10-06/13 ATE F 1 60 221771 221772 FR 36,0
530 i 200 272 3,0 05/11-06/13 ATE F 1 60 221771 221772 FR 30,0
530 i 200 272 3,0 05/11-06/13 ATE F 1 60 221771 221772 FR 36,0
535 d 220 299 3,0 09/10-08/11 ATE F 1 60 221771 221772 FR 36,0
535 d 230 313 3,0 09/11-10/16 ATE F 1 60 221771 221772 FR 36,0
535 d xDrive 230 313 3,0 09/11-10/16 ATE F 1 60 221771 221772 FR 36,0
535 i 225 306 3,0 01/10-10/16 ATE F 1 60 221771 221772 FR 30,0
535 i 225 306 3,0 01/10-10/16 ATE F 1 60 221771 221772 FR 36,0
535 i 240 326 3,0 07/13-10/16 ATE F 1 60 221771 221772 FR 30,0
535 i 240 326 3,0 07/13-10/16 ATE F 1 60 221771 221772 FR 36,0
535 i xDrive 225 306 3,0 03/11-10/16 ATE F 1 60 221771 221772 FR 30,0
535 i xDrive 225 306 3,0 03/11-10/16 ATE F 1 60 221771 221772 FR 36,0
535 i xDrive 240 326 3,0 07/13-10/16 ATE F 1 60 221771 221772 FR 30,0
535 i xDrive 240 326 3,0 07/13-10/16 ATE F 1 60 221771 221772 FR 36,0
550 i 300 408 4,4 03/10-06/13 ATE F 1 60 221771 221772 FR 36,0
550 i 330 449 4,4 07/13-10/16 ATE F 1 60 221771 221772 FR 36,0
550 i xDrive 330 449 4,4 07/13-10/16 ATE F 1 60 221771 221772 FR 36,0
550 i xDrive 300 408 4,4 08/10-06/13 ATE F 1 60 221771 221772 FR 36,0
ActiveHybrid 250 340 3,0 12/11-10/16 ATE F 1 60 221771 221772 FR 30,0
ActiveHybrid 250 340 3,0 12/11-10/16 ATE F 1 60 221771 221772 FR 36,0
M 550 d xDrive 280 381 3,0 03/12-10/16 ATE F 1 60 221771 221772 FR 36,0
5 Gran Turismo (F07) (09/08-)
520 d 135 184 2,0 04/11-02/17 ATE F 1 60 221771 221772 FR 36,0
520 d 120 163 2,0 07/12-06/13 ATE F 1 60 221771 221772 FR 36,0
520 d 100 136 2,0 07/13-02/17 ATE F 1 60 221771 221772 FR 36,0
528 i 180 245 2,0 07/13-02/17 ATE F 1 60 221771 221772 FR 36,0
530 d 190 258 3,0 07/12-02/17 ATE F 1 60 221771 221772 FR 36,0
530 d 180 245 3,0 08/09-06/12 ATE F 1 60 221771 221772 FR 30,0
530 d 180 245 3,0 08/09-06/12 ATE F 1 60 221771 221772 FR 36,0
530 d 155 211 3,0 09/10-02/17 ATE F 1 60 221771 221772 FR 36,0
530 d xDrive 180 245 3,0 06/10-06/12 ATE F 1 60 221771 221772 FR 30,0
530 d xDrive 180 245 3,0 06/10-06/12 ATE F 1 60 221771 221772 FR 36,0
530 d xDrive 190 258 3,0 07/12-02/17 ATE F 1 60 221771 221772 FR 36,0
535 d 220 299 3,0 03/10-06/12 ATE F 1 60 221771 221772 FR 36,0
535 d 230 313 3,0 07/12-02/17 ATE F 1 60 221771 221772 FR 36,0
535 d xDrive 220 299 3,0 03/10-06/12 ATE F 1 60 221771 221772 FR 36,0
535 d xDrive 230 313 3,0 07/12-02/17 ATE F 1 60 221771 221772 FR 36,0
535 i 225 306 3,0 01/09-02/17 ATE F 1 60 221771 221772 FR 36,0
535 i xDrive 225 306 3,0 09/10-02/17 ATE F 1 60 221771 221772 FR 36,0
550 i 330 449 4,4 07/12-02/17 ATE F 1 60 221771 221772 FR 36,0
550 i 300 408 4,4 08/09-06/12 ATE F 1 60 221771 221772 FR 36,0
550 i xDrive 300 408 4,4 06/10-06/12 ATE F 1 60 221771 221772 FR 36,0
550 i xDrive 330 449 4,4 07/12-02/17 ATE F 1 60 221771 221772 FR 36,0
5 Touring (F11) (11/09-02/17)
518 d 100 136 2,0 07/13-02/17 ATE F 1 60 221771 221772 FR 30,0
518 d 105 143 2,0 07/13-06/14 ATE F 1 60 221771 221772 FR 30,0
518 d 110 150 2,0 07/14-02/17 ATE F 1 60 221771 221772 FR 36,0
520 d 120 163 2,0 06/10-02/17 ATE F 1 60 221771 221772 FR 30,0
520 d 135 184 2,0 06/10-06/14 ATE F 1 60 221771 221772 FR 30,0
520 d 147 200 2,0 06/10-06/14 ATE F 1 60 221771 221772 FR 30,0
520 d 140 190 2,0 07/14-02/17 ATE F 1 60 221771 221772 FR 36,0
520 d xDrive 120 163 2,0 07/13-02/17 ATE F 1 60 221771 221772 FR 30,0
520 d xDrive 135 184 2,0 07/13-06/14 ATE F 1 60 221771 221772 FR 30,0
520 d xDrive 147 200 2,0 07/13-06/14 ATE F 1 60 221771 221772 FR 30,0
520 d xDrive 140 190 2,0 07/14-02/17 ATE F 1 60 221771 221772 FR 36,0
525 d 155 211 2,0 09/11-02/17 ATE F 1 60 221771 221772 FR 30,0
525 d 160 218 2,0 09/11-02/17 ATE F 1 60 221771 221772 FR 30,0
525 d 155 211 2,0 09/11-02/17 ATE F 1 60 221771 221772 FR 36,0
525 d 160 218 2,0 09/11-02/17 ATE F 1 60 221771 221772 FR 36,0
525 d 150 204 3,0 09/10-08/11 ATE F 1 60 221771 221772 FR 30,0
525 d 150 204 3,0 09/10-08/11 ATE F 1 60 221771 221772 FR 36,0
525 d xDrive 155 211 2,0 07/13-02/17 ATE F 1 60 221771 221772 FR 30,0
525 d xDrive 160 218 2,0 07/13-02/17 ATE F 1 60 221771 221772 FR 30,0
525 d xDrive 155 211 2,0 07/13-02/17 ATE F 1 60 221771 221772 FR 36,0
525 d xDrive 160 218 2,0 07/13-02/17 ATE F 1 60 221771 221772 FR 36,0
528 i 180 245 2,0 09/11-02/17 ATE F 1 60 221771 221772 FR 30,0
528 i 180 245 2,0 09/11-02/17 ATE F 1 60 221771 221772 FR 36,0
528 i 190 258 3,0 11/09-08/11 ATE F 1 60 221771 221772 FR 30,0
528 i 190 258 3,0 11/09-08/11 ATE F 1 60 221771 221772 FR 36,0
528 i xDrive 180 245 2,0 09/11-02/17 ATE F 1 60 221771 221772 FR 30,0
528 i xDrive 180 245 2,0 09/11-02/17 ATE F 1 60 221771 221772 FR 36,0
530 d 180 245 3,0 06/10-08/11 ATE F 1 60 221771 221772 FR 30,0
530 d 180 245 3,0 06/10-08/11 ATE F 1 60 221771 221772 FR 36,0
530 d 190 258 3,0 09/11-02/17 ATE F 1 60 221771 221772 FR 30,0
530 d 210 286 3,0 09/11-02/17 ATE F 1 60 221771 221772 FR 30,0
530 d 190 258 3,0 09/11-02/17 ATE F 1 60 221771 221772 FR 36,0
530 d 210 286 3,0 09/11-02/17 ATE F 1 60 221771 221772 FR 36,0
530 d xDrive 190 258 3,0 03/11-02/17 ATE F 1 60 221771 221772 FR 30,0
530 d xDrive 210 286 3,0 03/11-02/17 ATE F 1 60 221771 221772 FR 30,0
530 d xDrive 190 258 3,0 03/11-02/17 ATE F 1 60 221771 221772 FR 36,0
530 d xDrive 210 286 3,0 03/11-02/17 ATE F 1 60 221771 221772 FR 36,0
530 i 190 258 3,0 03/10-05/13 ATE F 1 60 221771 221772 FR 30,0
530 i 190 258 3,0 03/10-05/13 ATE F 1 60 221771 221772 FR 36,0
530 i 200 272 3,0 07/11-06/13 ATE F 1 60 221771 221772 FR 30,0
530 i 200 272 3,0 07/11-06/13 ATE F 1 60 221771 221772 FR 36,0
535 d 220 299 3,0 09/10-08/11 ATE F 1 60 221771 221772 FR 36,0
535 d 230 313 3,0 09/11-02/17 ATE F 1 60 221771 221772 FR 36,0
535 d xDrive 230 313 3,0 09/11-02/17 ATE F 1 60 221771 221772 FR 36,0
535 i 225 306 3,0 06/10-02/17 ATE F 1 60 221771 221772 FR 30,0
535 i 225 306 3,0 06/10-02/17 ATE F 1 60 221771 221772 FR 36,0
535 i 240 326 3,0 07/13-02/17 ATE F 1 60 221771 221772 FR 30,0
535 i 240 326 3,0 07/13-02/17 ATE F 1 60 221771 221772 FR 36,0
535 i xDrive 240 326 3,0 07/13-02/17 ATE F 1 60 221771 221772 FR 30,0
535 i xDrive 240 326 3,0 07/13-02/17 ATE F 1 60 221771 221772 FR 36,0
535 i xDrive 225 306 3,0 09/11-02/17 ATE F 1 60 221771 221772 FR 30,0
535 i xDrive 225 306 3,0 09/11-02/17 ATE F 1 60 221771 221772 FR 36,0
550 i 330 449 4,4 07/13-02/17 ATE F 1 60 221771 221772 FR 36,0
550 i 300 408 4,4 09/10-06/13 ATE F 1 60 221771 221772 FR 36,0
M 550 d xDrive 280 381 3,0 03/12-02/17 ATE F 1 60 221771 221772 FR 36,0
6 Convertible (F12) (12/10-06/18)
640 d 230 313 3,0 09/11-06/18 ATE F 1 60 221771 221772 FR 36,0
640 d xDrive 230 313 3,0 03/12-06/18 ATE F 1 60 221771 221772 FR 36,0
640 i 235 320 3,0 09/11-06/18 ATE F 1 60 221771 221772 FR 30,0
640 i 235 320 3,0 09/11-06/18 ATE F 1 60 221771 221772 FR 36,0
640 i xDrive 235 320 3,0 03/13-06/18 ATE F 1 60 221771 221772 FR 30,0
640 i xDrive 235 320 3,0 03/13-06/18 ATE F 1 60 221771 221772 FR 36,0
650 i 330 449 4,4 07/12-06/18 ATE F 1 60 221771 221772 FR 36,0
650 i 298 405 4,4 09/11-12/12 ATE F 1 60 221771 221772 FR 36,0
650 i 300 408 4,4 12/10-06/12 ATE F 1 60 221771 221772 FR 36,0
650 i xDrive 330 449 4,4 07/12-06/18 ATE F 1 60 221771 221772 FR 36,0
650 i xDrive 300 407 4,4 09/11-06/12 ATE F 1 60 221771 221772 FR 36,0
6 Coupe (F13) (07/11-10/17)
640 d 230 313 3,0 09/11-10/17 ATE F 1 60 221771 221772 FR 36,0
640 d xDrive 230 313 3,0 03/12-10/17 ATE F 1 60 221771 221772 FR 36,0
640 i 235 320 3,0 07/11-10/17 ATE F 1 60 221771 221772 FR 30,0
640 i 235 320 3,0 07/11-10/17 ATE F 1 60 221771 221772 FR 36,0
640 i xDrive 235 320 3,0 03/13-10/17 ATE F 1 60 221771 221772 FR 30,0
640 i xDrive 235 320 3,0 03/13-10/17 ATE F 1 60 221771 221772 FR 36,0
650 i 300 408 4,4 07/11-06/12 ATE F 1 60 221771 221772 FR 36,0
650 i 330 449 4,4 07/12-10/17 ATE F 1 60 221771 221772 FR 36,0
650 i 298 405 4,4 09/11-12/12 ATE F 1 60 221771 221772 FR 36,0
650 i xDrive 330 449 4,4 07/12-10/17 ATE F 1 60 221771 221772 FR 36,0
650 i xDrive 300 408 4,4 09/11-02/15 ATE F 1 60 221771 221772 FR 36,0
6 Gran Coupe (F06) (03/12-10/18)
640 d 230 313 3,0 03/12-10/18 ATE F 1 60 221771 221772 FR 36,0
640 d xDrive 230 313 3,0 03/13-10/18 ATE F 1 60 221771 221772 FR 36,0
640 i 235 320 3,0 03/12-10/18 ATE F 1 60 221771 221772 FR 30,0
640 i 235 320 3,0 03/12-10/18 ATE F 1 60 221771 221772 FR 36,0
640 i xDrive 235 320 3,0 03/13-10/18 ATE F 1 60 221771 221772 FR 30,0
640 i xDrive 235 320 3,0 03/13-10/18 ATE F 1 60 221771 221772 FR 36,0
650 i 330 449 4,4 07/12-10/18 ATE F 1 60 221771 221772 FR 36,0
650 i xDrive 330 449 4,4 07/12-10/18 ATE F 1 60 221771 221772 FR 36,0
7 (F01, F02, F03, F04) (02/08-12/15)
730 d 155 211 3,0 02/08-05/15 ATE F 1 60 221771 221772 FR 36,0
730 d 190 258 3,0 07/12-05/15 ATE F 1 60 221771 221772 FR 36,0
730 d 180 245 3,0 09/08-06/12 ATE F 1 60 221771 221772 FR 30,0
730 d 180 245 3,0 09/08-06/12 ATE F 1 60 221771 221772 FR 36,0
730 d xDrive 155 211 3,0 11/11-05/15 ATE F 1 60 221771 221772 FR 36,0
730 d xDrive 190 258 3,0 11/11-05/15 ATE F 1 60 221771 221772 FR 36,0
730 i, Li 190 258 3,0 09/09-06/15 ATE F 1 60 221771 221772 FR 30,0
730 i, Li 190 258 3,0 09/09-06/15 ATE F 1 60 221771 221772 FR 36,0
740 d 230 313 3,0 07/12-06/15 ATE F 1 60 221771 221772 FR 36,0
740 d 225 306 3,0 09/09-06/12 ATE F 1 60 221771 221772 FR 36,0
740 d xDrive 230 313 3,0 07/12-06/15 ATE F 1 60 221771 221772 FR 36,0
740 d xDrive 225 306 3,0 09/10-12/12 ATE F 1 60 221771 221772 FR 36,0
740 i, Li 235 320 3,0 07/12-12/15 ATE F 1 60 221771 221772 FR 36,0
740 i, Li 240 326 3,0 09/08-06/12 ATE F 1 60 221771 221772 FR 36,0
740 i, Li xDrive 235 320 3,0 07/12-12/15 ATE F 1 60 221771 221772 FR 36,0
750 d xDrive 280 381 3,0 07/12-12/15 ATE F 1 60 221771 221772 FR 36,0
750 i, Li 330 449 4,4 07/12-06/15 ATE F 1 60 221771 221772 FR 36,0
750 i, Li 300 408 4,4 09/08-06/12 ATE F 1 60 221771 221772 FR 36,0
750 i, Li xDrive 330 449 4,4 07/12-06/15 ATE F 1 60 221771 221772 FR 36,0
750 i, Li xDrive 300 408 4,4 09/09-06/12 ATE F 1 60 221771 221772 FR 36,0
ActiveHybrid 7 260 354 3,0 08/12-06/15 ATE F 1 60 221771 221772 FR 36,0
ActiveHybrid 7 342 465 4,4 04/10-06/12 ATE F 1 60 221771 221772 FR 36,0

Produits associés

Politique de confidentialité @ 2026 - UDF. Création de sites internet | ProduWeb
