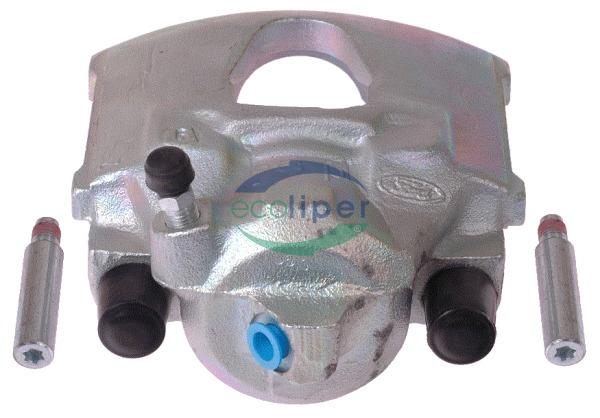

Produit

Photo pour information, le produit actuel peut être différent

Numéro d'article

221003

Numéro EAN

5414560105184

Caractéristiques

Référence opposée	221004
Kit(s)	KC22001, KC22001S, KI54121, KP1528
Piston(s)	PI5415
Diamètre(s) piston(s) (mm)	1x Ø54
Fabricant	ATE
Position sur la voiture	Etrier avant gauche
OE	1 630 135
Marque	FORD
Epaisseur disque (mm)	24,0

Marque	Réference marque	Remarque
FORD	1 630 135

FORD

Type	KW	CH	Chassis	Moteur	Année	Marque	FR	N	Diamètre	Gauche	Droite	P.O.S	Epaisseur
ESCORT III (GAA) (09/80-07/86)
1.1	37	50	GAA	1,1	08/83-12/85	ATE	F	1	54	221003	221004	FF	24,0
1.1	40	55	GAA	1,1	09/80-08/83	ATE	F	1	54	221003	221004	FF	24,0
1.1	43	59	GAA	1,1	09/80-08/83	ATE	F	1	54	221003	221004	FF	24,0
1.3	43	58	GAA	1,3	01/84-12/85	ATE	F	1	54	221003	221004	FF	24,0
1.3	51	69	GAA	1,3	09/80-12/85	ATE	F	1	54	221003	221004	FF	24,0
1.6	48	65	GAA	1,6	05/83-07/86	ATE	F	1	54	221003	221004	FF	24,0
1.6	58	79	GAA	1,6	09/80-12/85	ATE	F	1	54	221003	221004	FF	24,0
1.6 i (GAA)	66	90	GAA	1,6	07/85-12/85	ATE	F	1	54	221003	221004	FF	24,0
1.6	71	97	GAA	1,6	09/80-10/82	ATE	F	1	54	221003	221004	FF	24,0
1.6 XR3i	77	105	GAA	1,6	10/82-12/85	ATE	F	1	54	221003	221004	FF	24,0
1.6 XR3i	77	105	GAA	1,6	10/82-12/85	ATE	F	1	54	221004	221003	FR	24,0
RS 1600i	85	115	GAA	1,6	05/82-12/85	ATE	F	1	54	221003	221004	FF	24,0
RS 1600i	85	115	GAA	1,6	05/82-12/85	ATE	F	1	54	221004	221003	FR	24,0
1.6 D	40	54	GAA	1,6	02/84-12/85	ATE	F	1	54	221003	221004	FF	24,0
ESCORT IV Convertible (ALF) (01/86-07/90)
1.4	54	73	ALF	1,4	02/87-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.4	55	75	ALF	1,4	01/86-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.6	58	79	ALF	1,6	01/86-12/87	ATE	F	1	54	221003	221004	FF	24,0
1.6 i	66	90	ALF	1,6	01/86-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.6 i	75	102	ALF	1,6	08/89-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.6 XR3i	77	105	ALF	1,6	01/86-07/90	ATE	F	1	54	221003	221004	FF	24,0
ESCORT IV (GAF, AWF, ABFT) (10/85-10/90)
1.1	37	50	GAF, AWF, ABFT	1,1	12/85-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.3	44	60	GAF, AWF, ABFT	1,3	01/86-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.3 (GAF)	46	63	GAF, AWF, ABFT	1,3	07/88-10/90	ATE	F	1	54	221003	221004	FF	24,0
1.3	51	69	GAF, AWF, ABFT	1,3	11/86-07/88	ATE	F	1	54	221003	221004	FF	24,0
1.4	51	70	GAF, AWF, ABFT	1,4	10/85-10/90	ATE	F	1	54	221003	221004	FF	24,0
1.4	54	73	GAF, AWF, ABFT	1,4	01/86-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.4	55	75	GAF, AWF, ABFT	1,4	01/86-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.6	58	79	GAF, AWF, ABFT	1,6	01/86-12/88	ATE	F	1	54	221003	221004	FF	24,0
1.6	65	88	GAF, AWF, ABFT	1,6	04/89-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.6 i	66	90	GAF, AWF, ABFT	1,6	01/86-05/90	ATE	F	1	54	221003	221004	FF	24,0
1.6 i	75	102	GAF, AWF, ABFT	1,6	08/89-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.6 XR3i	77	105	GAF, AWF, ABFT	1,6	01/86-08/89	ATE	F	1	54	221003	221004	FF	24,0
1.6 D	40	54	GAF, AWF, ABFT	1,6	01/86-01/89	ATE	F	1	54	221003	221004	FF	24,0
1.8 D	44	60	GAF, AWF, ABFT	1,8	01/89-07/90	ATE	F	1	54	221003	221004	FF	24,0
ESCORT IV Turnier (AWF, AVF) (10/85-10/90)
1.1	37	50	AWF, AVF	1,1	10/85-09/90	ATE	F	1	54	221003	221004	FF	24,0
1.3	44	60	AWF, AVF	1,3	01/86-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.3	51	69	AWF, AVF	1,3	11/86-07/88	ATE	F	1	54	221003	221004	FF	24,0
1.4	51	70	AWF, AVF	1,4	10/85-10/90	ATE	F	1	54	221003	221004	FF	24,0
1.4	54	73	AWF, AVF	1,4	01/86-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.4	55	75	AWF, AVF	1,4	01/86-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.6	58	79	AWF, AVF	1,6	01/86-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.6 i	66	90	AWF, AVF	1,6	01/86-07/90	ATE	F	1	54	221003	221004	FF	24,0
1.6 D	40	54	AWF, AVF	1,6	01/86-01/89	ATE	F	1	54	221003	221004	FF	24,0
1.8 D	44	60	AWF, AVF	1,8	01/89-07/90	ATE	F	1	54	221003	221004	FF	24,0
ORION I (AFD) (07/83-03/86)
1.6	58	79	AFD	1,6	07/83-03/86	ATE	F	1	54	221003	221004	FF	24,0
1.6	58	79	AFD	1,6	07/83-03/86	ATE	F	1	54	221004	221003	FR	24,0
1.6 i	77	105	AFD	1,6	07/83-03/86	ATE	F	1	54	221003	221004	FF	24,0
1.6 i	77	105	AFD	1,6	07/83-03/86	ATE	F	1	54	221004	221003	FR	24,0
ORION II (AFF) (12/85-07/90)
1.4 Cat	54	73	AFF	1,4	02/87-07/90	ATE	F	1	54	221004	221003	FR	24,0
1.4	55	75	AFF	1,4	12/85-07/90	ATE	F	1	54	221004	221003	FR	24,0
1.6	66	90	AFF	1,6	12/85-07/90	ATE	F	1	54	221004	221003	FR	24,0
1.6 i Cat	66	90	AFF	1,6	03/86-07/90	ATE	F	1	54	221004	221003	FR	24,0
1.6 i	75	102	AFF	1,6	08/89-07/90	ATE	F	1	54	221004	221003	FR	24,0
1.6 i	77	105	AFF	1,6	03/86-07/90	ATE	F	1	54	221004	221003	FR	24,0
1.6 D	40	54	AFF	1,6	12/85-01/89	ATE	F	1	54	221004	221003	FR	24,0
P 100 II (10/87-12/92)
1.8 TD	55	75		1,8	10/87-12/92	ATE	F	1	54	221003	221004	FF	24,0
1.8 TD	55	75		1,8	10/87-12/92	ATE	F	1	54	221004	221003	FR	24,0
2.0	57	78		2,0	10/87-12/92	ATE	F	1	54	221003	221004	FF	24,0
2.0	57	78		2,0	10/87-12/92	ATE	F	1	54	221004	221003	FR	24,0
SIERRA I Hatchback (GBC) (08/82-02/87)
1.8	66	90	GBC	1,8	10/84-12/86	ATE	F	1	54	221004	221003	FR	24,0
2.0	66	90	GBC	2,0	08/82-10/84	ATE	F	1	54	221004	221003	FR	24,0
2.0	74	100	GBC	2,0	10/85-12/86	ATE	F	1	54	221004	221003	FR	24,0
2.0	77	105	GBC	2,0	08/82-12/86	ATE	F	1	54	221004	221003	FR	24,0
2.0 i	85	115	GBC	2,0	03/85-12/86	ATE	F	1	54	221004	221003	FR	24,0
2.3	84	114	GBC	2,3	08/82-12/86	ATE	F	1	54	221004	221003	FR	24,0
2.3 D	49	67	GBC	2,3	08/82-12/86	ATE	F	1	54	221004	221003	FR	24,0
SIERRA II (GBG, GB4) \| SAPPHIRE (01/87-02/93)
1.6	53	72	GBG, GB4	1,6	01/88-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.6	55	75	GBG, GB4	1,6	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.6 i	59	80	GBG, GB4	1,6	10/89-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.8	59	80	GBG, GB4	1,8	10/87-09/89	ATE	F	1	54	221004	221003	FR	24,0
1.8	64	87	GBG, GB4	1,8	05/88-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.8	66	90	GBG, GB4	1,8	01/87-05/88	ATE	F	1	54	221004	221003	FR	24,0
2.0 i	74	100	GBG, GB4	2,0	01/87-12/89	ATE	F	1	54	221004	221003	FR	24,0
2.0 i Cat	74	100	GBG, GB4	2,0	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0	77	105	GBG, GB4	2,0	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 i	85	115	GBG, GB4	2,0	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 i DOHC	85	115	GBG, GB4	2,0	12/91-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 i	88	120	GBG, GB4	2,0	01/90-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 i	92	125	GBG, GB4	2,0	01/90-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.9 i	107	145	GBG, GB4	2,9	08/88-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.9 i	110	150	GBG, GB4	2,9	08/88-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.8 TD	55	75	GBG, GB4	1,8	08/88-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.3 D	49	67	GBG, GB4	2,3	01/87-09/89	ATE	F	1	54	221004	221003	FR	24,0
SIERRA II Hatchback (GBC, GBG) (01/87-03/93)
1.6	53	72	GBC, GBG	1,6	01/88-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.6	55	75	GBC, GBG	1,6	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.6 i	59	80	GBC, GBG	1,6	10/89-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.8	59	80	GBC, GBG	1,8	10/87-05/88	ATE	F	1	54	221004	221003	FR	24,0
1.8	64	87	GBC, GBG	1,8	05/88-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.8	66	90	GBC, GBG	1,8	01/87-05/88	ATE	F	1	54	221004	221003	FR	24,0
2.0 i	74	100	GBC, GBG	2,0	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 i Cat	74	100	GBC, GBG	2,0	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0	77	105	GBC, GBG	2,0	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 i	85	115	GBC, GBG	2,0	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 i DOHC	85	115	GBC, GBG	2,0	12/91-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 i	88	120	GBC, GBG	2,0	06/89-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 i	92	125	GBC, GBG	2,0	06/89-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.9 i	107	145	GBC, GBG	2,9	08/88-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.8 TD	55	75	GBC, GBG	1,8	08/88-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.3 D	49	67	GBC, GBG	2,3	01/87-09/89	ATE	F	1	54	221004	221003	FR	24,0
SIERRA II Turnier (BNG) (01/87-02/93)
1.6	53	72	BNG	1,6	01/88-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.6	55	75	BNG	1,6	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.6 i	59	80	BNG	1,6	10/89-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.8	59	80	BNG	1,8	10/87-05/88	ATE	F	1	54	221004	221003	FR	24,0
1.8	64	87	BNG	1,8	05/88-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.8	66	90	BNG	1,8	01/87-05/88	ATE	F	1	54	221004	221003	FR	24,0
2.0 i	74	100	BNG	2,0	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 i Cat	74	100	BNG	2,0	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0	77	105	BNG	2,0	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 i	85	115	BNG	2,0	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 i DOHC	85	115	BNG	2,0	12/91-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 i	88	120	BNG	2,0	05/89-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 4x4	88	120	BNG	2,0	02/90-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.0 i	92	125	BNG	2,0	05/89-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.9	107	145	BNG	2,9	08/88-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.9 i	110	150	BNG	2,9	08/88-02/93	ATE	F	1	54	221004	221003	FR	24,0
1.8 TD	55	75	BNG	1,8	08/88-02/93	ATE	F	1	54	221004	221003	FR	24,0
2.3 D	49	67	BNG	2,3	01/87-02/93	ATE	F	1	54	221004	221003	FR	24,0
SIERRA Turnier (BNC) (08/82-12/86)
1.8	66	90	BNC	1,8	10/84-12/86	ATE	F	1	54	221004	221003	FR	24,0
2.0	66	90	BNC	2,0	08/82-10/84	ATE	F	1	54	221004	221003	FR	24,0
2.0	74	100	BNC	2,0	10/85-12/86	ATE	F	1	54	221004	221003	FR	24,0
2.0	77	105	BNC	2,0	08/82-12/86	ATE	F	1	54	221004	221003	FR	24,0
2.0	85	115	BNC	2,0	03/85-12/86	ATE	F	1	54	221004	221003	FR	24,0
2.3	84	114	BNC	2,3	08/82-12/86	ATE	F	1	54	221004	221003	FR	24,0
2.3 D	49	67	BNC	2,3	08/82-12/86	ATE	F	1	54	221004	221003	FR	24,0

221003

Produits associés

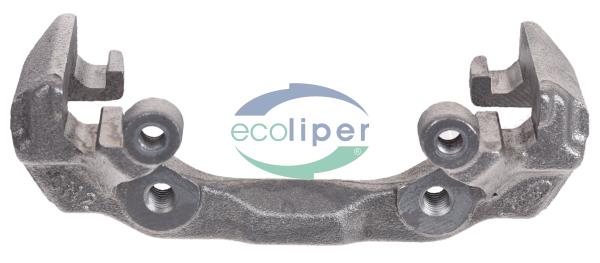

SU221003

KC22001S

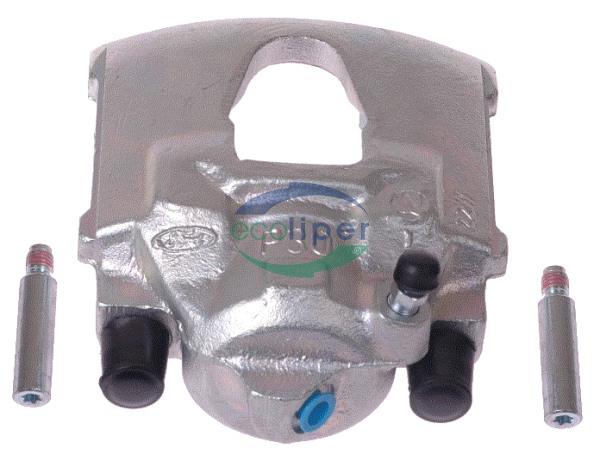

221004

KC22001

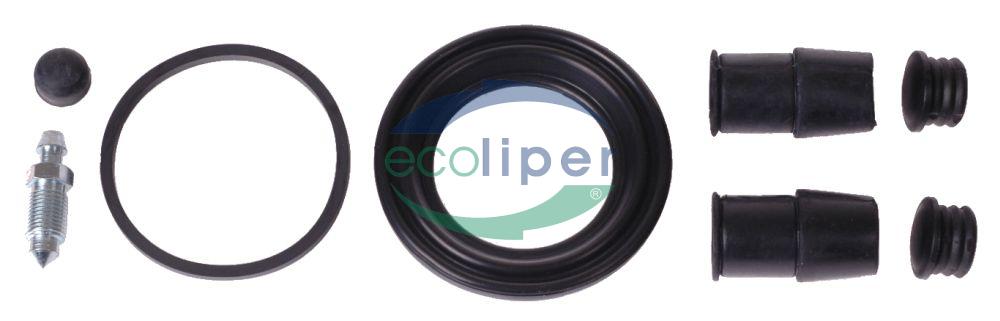

KI54121

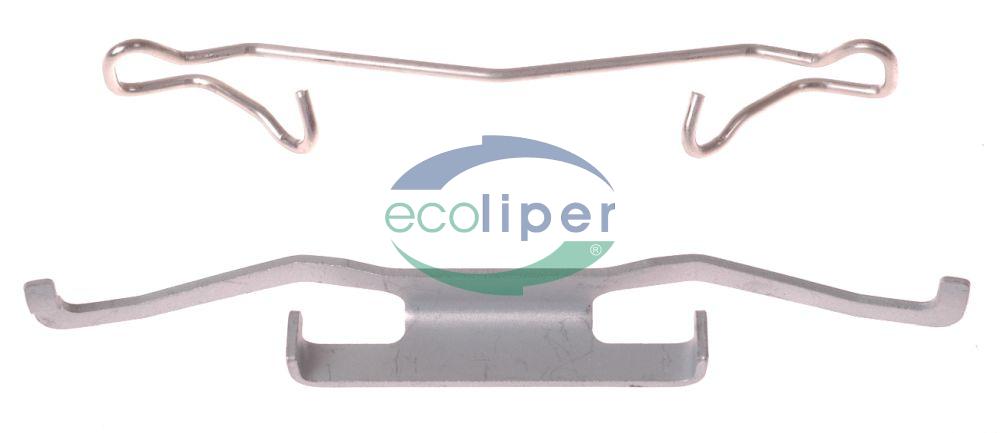

KP1528

PI5415
